Inside The DDoS Botnets - BlackEnergy and Darkness - Part 1

BlackEnergy was very popular DDoS bot which used to prevail couple of years back . This bot has been under development and has evolved since quite some time with its successor named Darkness bot with the similar abilities.This Bot has evolved with new features continuously added to extend its malicious capabilities . Researchers have been keeping an eye on this and analysis of the Command and Control(C&C) traffic of the bot samples existing in the wild has revealed that this bot should be a product of the Russian Cyber market , while the traces indicating  the same have been found within the bot executables as well.

This bot comes with a variety of DoSing capabilities and has been observed to be targeting the Russian Websites. Recently, during our Investigation, we managed to get access to the BlackEnergy builder toolkit which unlike previous available builder versions , comes with the option of building the polymorphic binaries to bypass AV detections and also includes anti-debugging features. The toolkit comes with the root directory www/ which includes the PHP scripts for controlling the Bot and other details such as MySQL database schemas which gives fair enough idea on the architecture of the Botnet.

This blog  provides detailed analysis of the BlackEnergy bot builder toolkit. We will also examine the server side PHP scripts to understand the bot command and control channel. Additionally we will also analyze the DDoS traffic generated by the bot. Later part of this series also sheds some light over the recently emerging Darkness bot which is believed to be related to BlackEnergy and has overshadowed BlackEnergy in terms of its DoSing capabilities.

BlackEnergy DDoS Bot builder:

Above screenshot is of the builder toolkit used to build the bot client which is then usually downloaded by victims through drive-by-downloads or distributed through Spam e-mails.

Below are all the default parameters used to build the bot client and as such most of the parameters are very well self explanatory.

Host             : C&C Server communicating with the bot client .

Request Rate         : Specifies the time interval after which new command should be      fetched from the C&C server.

Build ID                : Unique Build ID for each bot . This will change every time the builder  tool kit  is invoked.

Default Command : Command to execute if bot client cannot connect to the C&C server.

Execute after        : Time after which command should be executed.

Outfile                  : Final bot client executable name

Default DDoS parameters

ICMP Freq  : No. of ICMP packets to send in the attack.

ICMP Size   : Size of the ICMP packets in the attack.

Syn Freq     : No. of SYN packets to send in SYN flood

HTTP Freq : No. of HTTP Request to send in the HTTP flood

HTTP Threads : No. of HTTP threads to create during the attack.

TCP /UDP Freq : No. of TCP / UDP packets to send during TCP / UDP flood attack.

TCP Size    : Size of the TCP payload.

UDP Size   : Size of the UDP payload.

Spoof IP’s  : Boolean value to enable or disable IP Spoofing during the flooding.

Use Crypt traffic  : May be used for encrypting the bot client communication.

Use polimorph exe : Inserts different encryption routines to bypass AV detection.

  and antidebug

After specifying all the configuration options, clicking on “Build” button will output the bot client which is then distributed through various means

Server Side Botnet Command and Control System :

The toolkit comes with the C&C server side PHP scripts which interacts with the MYSQL database at the backend to track the bot infections. We’ve observed the  following files in the toolkit .

§

     Auth.php

§     Config.php

§     Index.php

§     MySQL.php

§     Stat.php

§     db.sql

    Readme.txt

Let’s understand the code in each of these files and learn how the system works altogether.

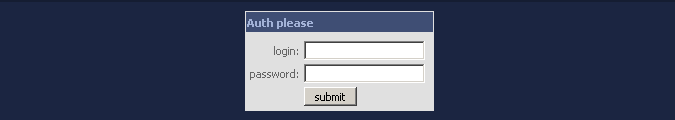

The C&C system comes with the basic HTTP password authentication scheme. Auth.php presents the Login/Password screen from where the Botnet can be further controlled by the Bot Master.

Admin and MySQL Login details are saved in the config.php file as below.

         // íàñòðîéêè áàçû

         $opt['mysql_host'] = "localhost";

         $opt['mysql_user'] = "b0t2";

         $opt['mysql_pass'] = "2413038";

         $opt['mysql_base'] = "b0t2";

          // ëîãèí è ïàññ ê àäìèíêå

         $opt['admin_pass']  = "admin";

         $opt['admin_login'] = "132";

?>

Bot C&C system has a pretty simple database schema with the SQL queries in the db.sql file. Following is an excerpt  from that file.

--

-- Table structure for table `opt`

--

CREATE TABLE `opt` (

  `name` varchar(255) NOT NULL,

  `value` varchar(255) NOT NULL,

  PRIMARY KEY  (`name`)

);

“Opt“ table has the following name and its default values which is displayed on the UI when index.php is accessed.

--

-- Dumping data for table `opt`

--

INSERT INTO `opt` (`name`, `value`) VALUES ('attack_mode', '0'),

('cmd', 'wait'),

('http_freq', '100'),

('http_threads', '3'),

('icmp_freq', '10'),

('icmp_size', '2000'),

('max_sessions', '30'),

('spoof_ip', '0'),

('syn_freq', '10'),

('tcpudp_freq', '20'),

('tcp_size', '2000'),

('udp_size', '1000'),

('ufreq', '1');

-- --------------------------------------------------------

db.sql  also has the important table structure , “stat” used for tracking the size of the botnet. All the data that is POSTed by the bot client is logged in this table along with the Build ID which is sent back by the bot client to the C&C system .

--

-- Table structure for table `stat`

--

CREATE TABLE `stat` (

  `id` varchar(50) NOT NULL,

  `addr` varchar(16) NOT NULL,

  `time` int(11) NOT NULL,

  `build` varchar(255) NOT NULL,

  PRIMARY KEY  (`id`)

);

Index.php is the script that connects to the SQL database and fetches the statistics which are displayed on the GUI. Following SQL queries are found in the index.php file

$r = db_query("SELECT * FROM `opt`");   while ($f = mysql_fetch_array($r))        $opt[$f['name']] = $f['value'];

$r = db_query("SELECT COUNT(*) AS `cnt` FROM `stat` WHERE ".time()."-`time`<".($opt['ufreq']*60));  $btotal = intval(mysql_result($r, 0, 0));

$r = db_query("SELECT COUNT(*) AS `cnt` FROM `stat` WHERE ".time()."-`time`<".(60*60));  $bhour = intval(mysql_result($r, 0, 0));

$r = db_query("SELECT COUNT(*) AS `cnt` FROM `stat` WHERE ".time()."-`time`<".(60*60*24));   $bday = intval(mysql_result($r, 0, 0));

$r = db_query("SELECT COUNT(*) AS `cnt` FROM `stat`");

  $ball = intval(mysql_result($r, 0, 0));   $builds = array();

$sql = "SELECT COUNT(*) AS `cnt`, `build` FROM `stat` GROUP BY `build`";

$r = db_query($sql);

Botnet Commands

We have reverse engineered C&C code on the bot client and have identified that it comes with 3 major type of commands. Arguments to these commands are also documented in the Readme.txt and cmdhelp.html files  accompanying this package in the Russian language . During our analysis of the bot client binary , we’ve also found the 4th command which is not documented in the help files. Let ‘s understand each of the command and its binary code

A )  flood :-

“Flood” command instructs the bot client to initiate several different types of flooding attacks Arguments to this command instructs the bot about the type of flood attack to generate along with the other parameters as shown earlier Figure 1 . Arguments to the type of flooding attacks can be following:

-      ICMP

-      UDP

-      SYN

-      HTTP

-      Data

Flood command along with the arguments and other parameters are sent by the server to the bot client in Base-64 encoded format . Below is an example of the decoded command indicating  how the bot client is instructed to carry out a TCP SYN flood on port 80:

4500;2000;100;1;0;30;500;500;200;1000;2000#flood syn mail.ru 80 #10#xEN-XPSP1_80D1F15C

B )  stop :-

Stop command instructs the bot client to temporarily stop DDoS floods for the specified number of seconds

C )  die :-

Die command instructs the bot client to delete itself from the infected system. It calls the ExitProcess API to terminate the process and stop all DDoS activities.

PUSH 3

PUSH _bot.15111484        ;  ASCII "die"

MOV EAX, [ARG.1]         ;  _bot.

PUSH EAX

CALL _bot.151154C0

ADD ESP, 0C

TEST EAX, EAX

JNZ SHORT _bot.15112C2A

CALL _bot.151127B0

PUSH _bot.15116900          ; /FileName = ""

CALL DWORD PTR DS:[<&KERNEL32.DeleteFileA>]   ; \DeleteFileA

PUSH 0                                        ; /ExitCode = 0

CALL DWORD PTR DS:[<&KERNEL32.ExitProcess>]   ; \ExitProcess

E )  wait:-

This command instructs the bot client to remain silent without performing any activity and contact the C&C server for new commands after the specified interval. Format of this command is as shown below :

 4500;2000;100;1;0;30;500;500;200;1000;2000#wait#10#xEN-XPSP1_80D1F15C

This instructs the bot client to wait for 10 minutes before checking for new commands . This is exactly what can be figured out from the screenshot below

Network Communications:

BlackEnergy Bot client uses HTTP protocol to communicate with the C&Cserver. It uses HTTP POST request to stat.php page as shown in the "Architecture of Botnet" section. POST request data is then logged into the “stat” table in the database primarily used for tracking the bots.

The information sent by the bot-client in the HTTP POST request message includes the ID and the build ID.

ID parameter is a combination of the SMB hostname and the C:\ volume information of the infected machine. The code section below shows how the ID parameter is built

Build_ID is the parameter which is randomly generated by the bot builder and is probably used to track the botnet infections.

In reponse, the C&C server replies with the Base-64 encoded command as shown below.

The decoded command shows the following:

4500;2000;100;1;0;30;500;500;200;1000;2000#wait#10#xEN-XPSP1_80D1F15C.

This shows the extent upto which the DDoS parameters are configurable in this bot. All the parameters are present even in the #wait# command. Likewise, variety of different DoS commands can be given by C&C sever, few of which are listed below:

# flood syn www.abc.com 25#10#

# flood http www.xyz.com#20#

# flood udp;dns;syn;1.1.1.1#10#

# flood icmp 1.1.1.1#5#

A significant finding of our analysis has shown that the toolkit that is used to build the bot client executable is Backdoored. On execution of the toolkit, it opens a random port on the infected system in the listening mode. Also , it is found sending significant system information to the remote server . Below is the snapshot of Base-64 encoded traffic that we captured when the toolkit was launched for building the bot.

Decoding above traffic shows the info that was being sent by this toolkit

In the next part of this blog , I will talk about Darkness , Another highly prevalent DDoS Botnet on the Internet.
